Digital Sensor TTP223B Module – Capacitive Touch Switch for Contactless Control

Original price was: ₹ 57.Current price is: ₹ 19.99. Exclusive of GST

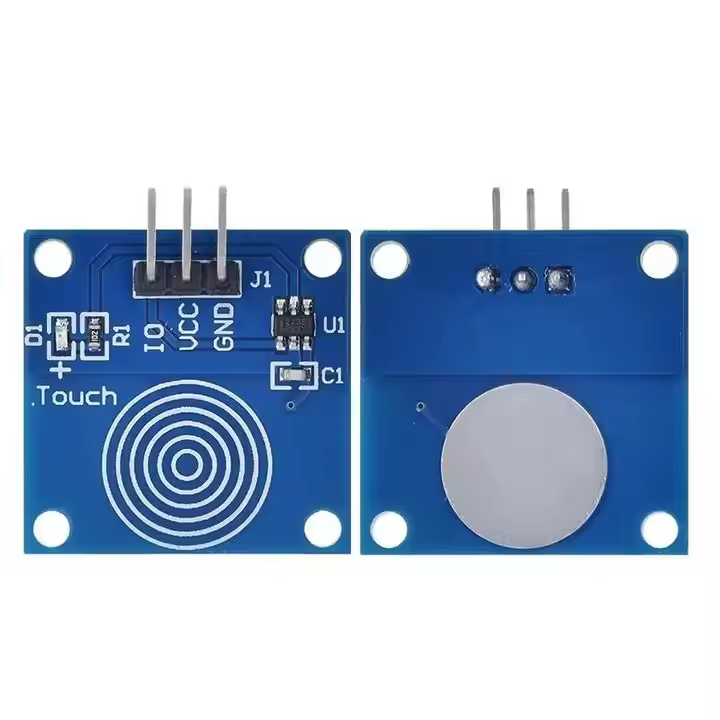

The TTP223B Capacitive Touch Sensor Module is a compact, low-power digital switch that detects touch-based input via capacitive sensing. Replacing traditional mechanical buttons, this module enables touch-sensitive activation in your electronics projects, delivering both aesthetic elegance and enhanced durability.

10 in stock
  • Check Mark Estimated Delivery : Up to 3-5 business days
  • Check Mark Free Shipping & Returns : On all orders over Rs. 999
  • Check Mark Choose Your Courier : Select your preferred shipping partner for fast & secure delivery.
  • Visa Card
  • MasterCard
  • UPI Payments
  • Net Banking
  • Paytm logo
  • Phone pe logo
Guaranteed Safe And Secure Checkout
<10
₹ 19.99
10 - 24
₹ 19.39 3%
25 - 49
₹ 19.19 4%
50 - 99
₹ 18.99 5%
100 - 499
₹ 18.79 6%
500+
₹ 18.39 8%

Operating on 2V–5.5V DC, the module outputs a digital HIGH signal when a touch is detected, making it compatible with most microcontrollers such as Arduino, ESP32, Raspberry Pi, and more. It supports both momentary and toggle modes (via onboard solder pads), providing flexibility for various design requirements.

This module is ideal for implementing modern touch interfaces in DIY electronics, IoT systems, interactive panels, and smart devices.

Key Features:

  • Operating Voltage: 2V to 5.5V DC

  • Output Type: Digital HIGH when touched

  • Touch Sensing Distance: Up to 5mm (non-metallic surface)

  • Modes: Momentary / Toggle (selectable via pad configuration)

  • Response Time: Fast response (<60ms touch, <220ms release)

  • Low Power Consumption: Suitable for battery-powered applications

  • Built-in status LED indicator

Physical Attributes:

  • Weight: 1.3 grams

  • Dimensions: 15mm x 11mm x 4mm (L x W x H)

  • Pin Pitch: Standard 2.54mm (GND, VCC, SIG)

Applications:

  • Touch-based switches

  • DIY home automation

  • Interactive LED panels

  • Capacitive input for wearable or embedded devices

  • Smart lighting control

  • Contactless interface for hygiene-sensitive environments

Package Includes:

  • 1 x TTP223B Digital Capacitive Touch Sensor Module

Weight 0.002 kg
Dimensions 1.5 × 1.1 × 0.4 cm
