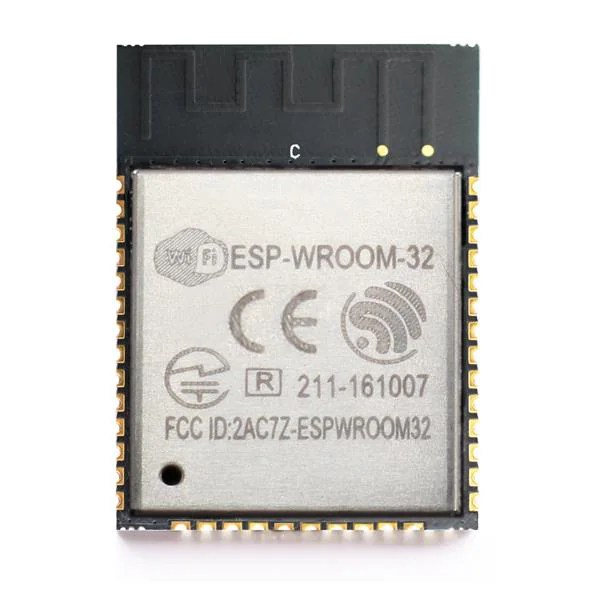

ESP32 WROOM 32 4MBIT SOC FRONT VIEW
ESP32 WROOM 32 4MBIT SOC BACK VIEW
Sale!

ESP32 WROOM 32 4M 32Mbit Flash WiFi Bluetooth Module chip

Original price was: ₹ 399.Current price is: ₹ 199. Exclusive of GST

ESP-32 Wifi Bluetooth combo module is an ultra-high performance and ultra-low-power consumption Wi-Fi and Bluetooth combo wireless platform based on ESPRESSIF ESP32 chipset. ESP-32 integrates the dual-core processor, 448 KByte ROM,520 KByte SRAM,16 KByte SRAM in RTC, 802.11 b/g/n/e/I Wi-Fi, Bluetooth v4.2 BR/EDR & BLE, clocks & Times, abundant peripheral Interfaces and security mechanism.

  • Check Mark Estimated Delivery : Up to 3-5 business days
  • Check Mark Free Shipping & Returns : On all orders over Rs. 999
  • Check Mark Choose Your Courier : Select your preferred shipping partner for fast & secure delivery.
  • Visa Card
  • MasterCard
  • UPI Payments
  • Net Banking
  • Paytm logo
  • Phone pe logo
Guaranteed Safe And Secure Checkout
<10
₹ 199
10 - 24
₹ 193.03 3%
25 - 49
₹ 191.04 4%
50 - 99
₹ 189.05 5%
100 - 499
₹ 187.06 6%
500+
₹ 183.08 8%

ESP-32S Wifi Bluetooth combo module provides SDK Firmware for fast on-line programming and open source toolchains based on GCC for development support. It is designed for Generic low power IoT sensor hub, loggers, video streaming for the camera, Wi-Fi & Bluetooth enabled devices, Home automation and mesh network applications, aimed at makers, hardware engineers, software engineers and solution provides.

ESP32 is a single-chip 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra-low power 40 nm technology. It is designed and optimized for the best power performance, RF performance, robustness, versatility, features, and reliability, for a wide variety of applications, and different power profiles.

ESP32 is the most integrated solution for Wi-Fi + Bluetooth applications in the industry with less than 10 external components. ESP32 integrates the antenna switch, RF balun, power amplifier, low noise receive amplifier, filters, and power management modules. As such, the entire solution occupies a minimal Printed Circuit Board (PCB) area.

ESP32 is designed for mobile, wearable electronics, and the Internet of Things (IoT) applications. It has many features of state-of-the-art low-power chips, including fine-resolution clock gating, power modes, and dynamic power scaling.

Item Type: Bluetooth Module
Based On: ESP32 Based, WROOM Type
Length (mm): 24
Width (mm): 16
Height (mm): 3
Weight (g): 10
Shipping Weight 0.015 kg
Shipping Dimensions 3 × 2 × 1 cm
Dimensions 2.6 × 1.8 × 0.3 cm
