JHD 16x2 LCD display green with I2C module
JHD 16x2 LCD display with I2C module
Sale!

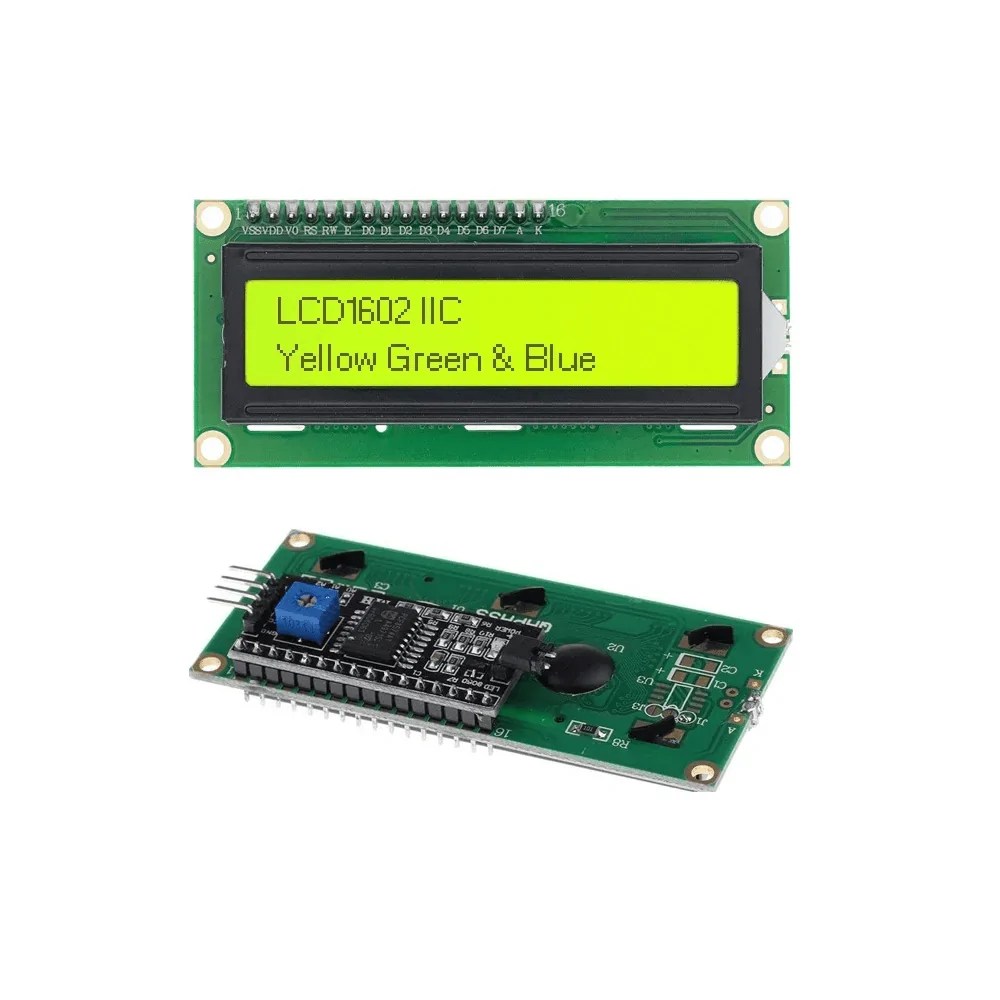

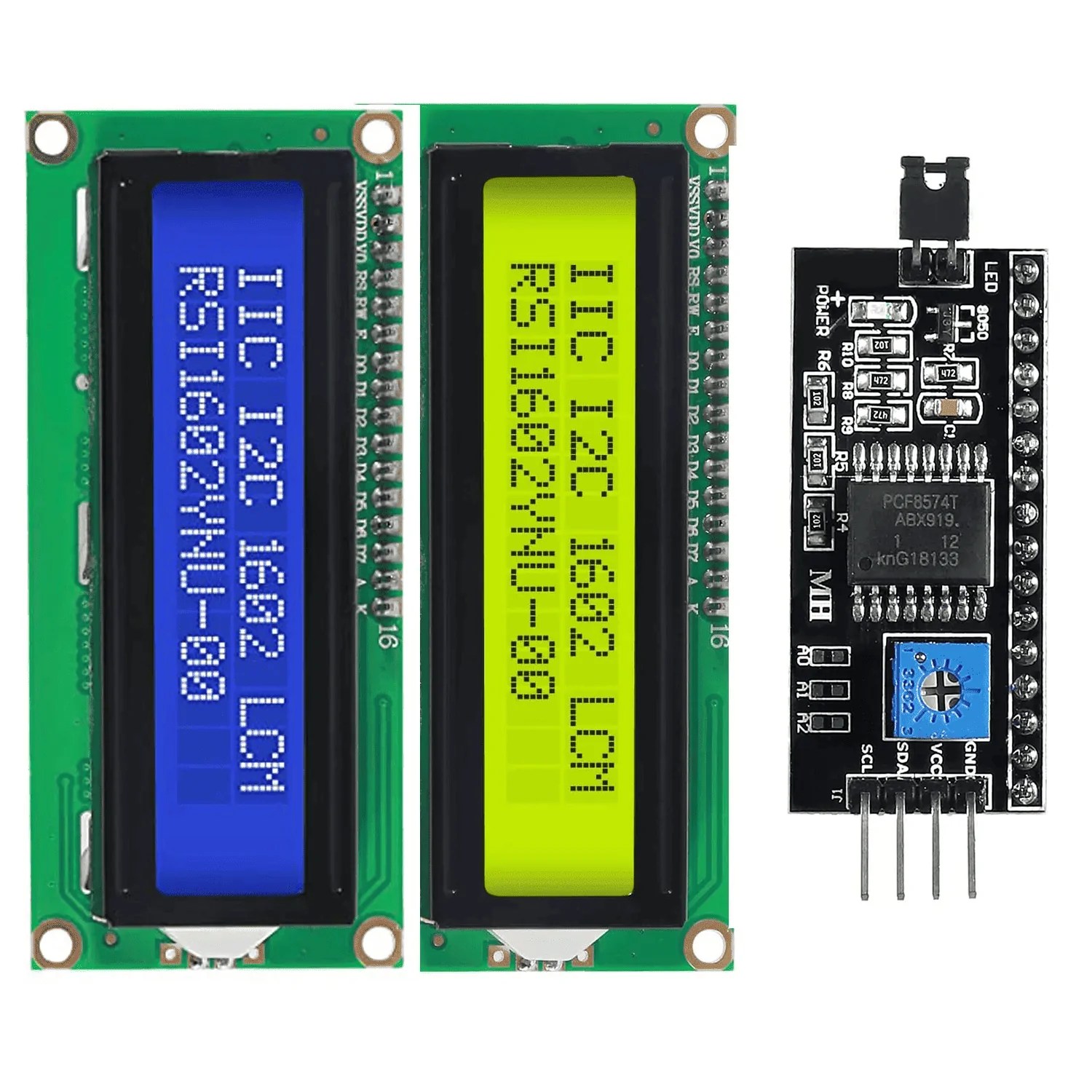

16×2 LCD Module Shield Yellow-Green Backlight with IIC I2C Display Lights

5.00 out of 5
(1 customer review)

Original price was: ₹ 399.Current price is: ₹ 134.90. Exclusive of GST

This is LCD 1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast black text upon a green background/backlight.

  • Check Mark Estimated Delivery : Up to 3-5 business days
  • Check Mark Free Shipping & Returns : On all orders over Rs. 999
  • Check Mark Choose Your Courier : Select your preferred shipping partner for fast & secure delivery.
  • Visa Card
  • MasterCard
  • UPI Payments
  • Net Banking
  • Paytm logo
  • Phone pe logo
Guaranteed Safe And Secure Checkout
<10
₹ 134.90
10 - 24
₹ 130.85 3%
25 - 49
₹ 129.50 4%
50 - 99
₹ 128.16 5%
100 - 499
₹ 126.81 6%
500+
₹ 124.11 8%

This is great green backlight LCD display. It is fantastic for Arduino based project. This LCD1602 LCD Display is very easy to interface with Arduino or Other Micro-controllers.

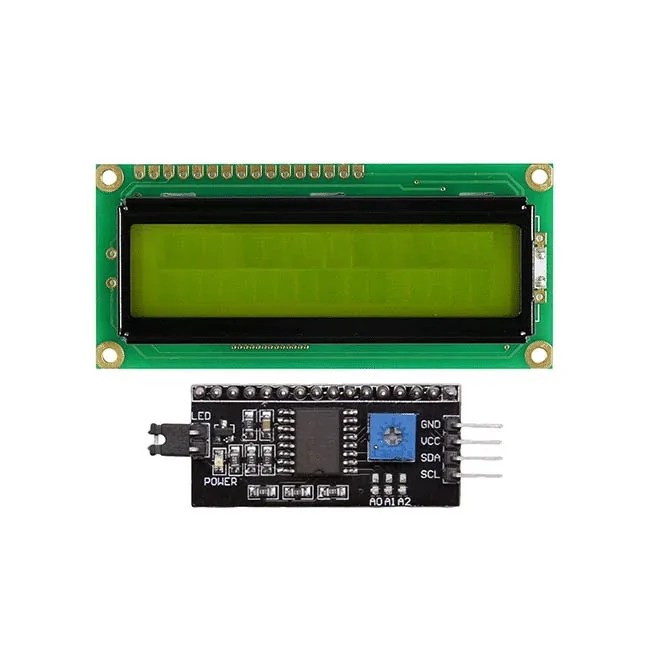

This display overcomes the drawback of LCD 1602 Parallel LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

If you already have the I2C adapter soldered onto the board like in this product, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The LCD display works with 5 Volts. So we go for the 5V Pin.

The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

Specifications & Features :-



  • Arduino IIC/I2C interface was developed to reduce the IO port usage on Arduino board
  • I2C adapter allows flexibility in connections
  • I2C Reduces the overall wirings.
  • 16 characters wide, 2 rows
  • Black text on the Green background
  • Single LED backlight included can be dimmed easily with a resistor or PWM.
  • Interface: I2C
  • Interface Address: 0x27
  • Character Color: Black
  • Backlight: Green
  • Supply voltage: 5V



Package Includes:-

1 x 1602 (16×2) LCD Display with I2C/IIC interface – Green Backlight



Weight 0.1 kg
Dimensions 15 × 10 × 4 cm

1 review for 16×2 LCD Module Shield Yellow-Green Backlight with IIC I2C Display Lights

5.0 Rating
1-1 of 1 review
  1. shubham sahu
    Reviewer

    I purchased the 16×2 LCD Module Shield with Yellow-Green Backlight and IIC/I2C interface from Elecsynergy, and it’s perfect for my project. The display is clear and bright, and the I2C interface makes it super easy to use with minimal wiring.

    The product was delivered quickly, and it was well-packaged. It’s of excellent quality and works flawlessly. I’m very impressed with Elecsynergy’s service and highly recommend them for electronics components!
