Transistors are the cornerstone of modern electronics, powering everything from small gadgets to complex computing systems. They function as amplifiers, switches, and signal modulators, making them indispensable in various applications.

In this blog, we’ll dive into what transistors are, their working principles, different types, and real-world applications. If you’re looking for high-quality transistors, Elecsynergy has got you covered with a wide range of options tailored for every project.

What Are Transistors?

A transistor is a semiconductor device used to amplify or switch electronic signals and electrical power. It has three terminals:

1. Base (B): Controls the flow of current.
2. Collector (C): The terminal where the current enters.
3. Emitter (E): The terminal where the current exits.

Transistors are built from silicon or germanium, and their operation relies on the flow of charge carriers (electrons and holes) in semiconductor materials.

How Transistors Work

Transistors operate based on the principle of current or voltage control. By applying a small current or voltage to the base, a larger current flows between the collector and emitter. This makes transistors ideal for amplifying signals or acting as switches in digital circuits.

The relationship between the input and output current in a transistor is defined by its current gain (β\beta), which determines the amplification factor.

Types of Transistors

Transistors come in various types, each with unique features and applications. Here’s a detailed look:

1. Bipolar Junction Transistors (BJTs)

BJTs are current-controlled devices with two types:

NPN Transistors

• Current flows from the collector to the emitter when a small current is applied to the base.
• Commonly used in switching and amplification applications.

PNP Transistors

• Current flows from the emitter to the collector when a small current exits the base.
• Ideal for low-side switching.

Applications:

• Amplifiers in audio equipment.
• Switching in logic circuits.

Shop BJTs for reliable amplification and switching solutions.

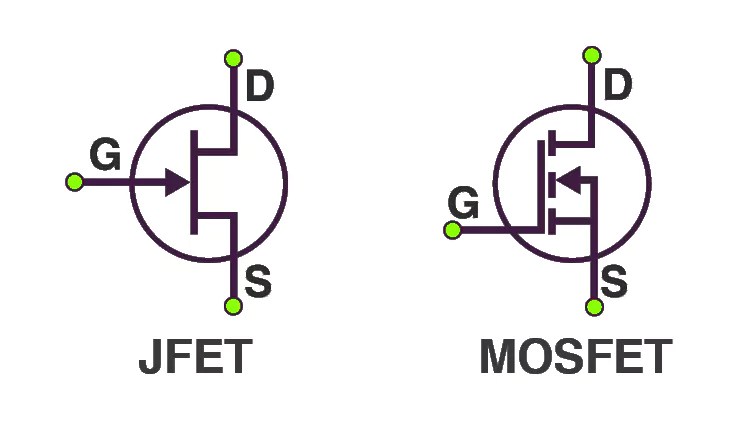

2. Field-Effect Transistors (FETs)

FETs are voltage-controlled devices, offering high input impedance and efficient operation.

JFETs (Junction Field-Effect Transistors)

• Operate with a reverse-biased PN junction.
• Applications: Low-noise amplifiers, analog switches.

MOSFETs (Metal-Oxide-Semiconductor FETs)

• Extremely efficient with low power consumption.
• Applications: Power supplies, motor control, and RF amplifiers.

Depletion and Enhancement Modes:

• Depletion Mode: Conducts by default and requires voltage to turn off.
• Enhancement Mode: Requires voltage to turn on.

Find high-performance FETs and MOSFETs for your power and signal control needs.

3. Darlington Transistors

A Darlington transistor pairs two BJTs to increase current gain.

Features:

• High current amplification.
• Simple to use in circuits.

Applications:

• Relay drivers.
• Motor controllers.

Explore our range of Darlington transistors for high-gain applications.

4. Insulated-Gate Bipolar Transistors (IGBTs)

IGBTs combine the efficiency of MOSFETs with the power-handling capabilities of BJTs.

Features:

• High efficiency for switching large currents.
• Ideal for medium to high-voltage applications.

Applications:

• Inverters for solar panels.
• Electric vehicle controllers.

Shop IGBTs for efficient power control in demanding applications.

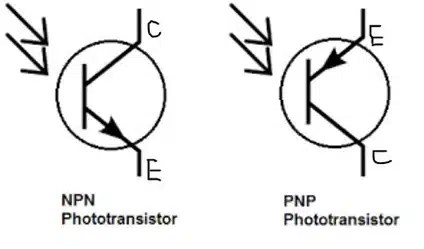

5. Phototransistors

Phototransistors are light-sensitive BJTs or FETs.

Features:

• Detect light and convert it into an electrical signal.
• Higher sensitivity compared to photodiodes.

Applications:

• Light sensors in automation.
• Optical communication systems.

Discover phototransistors for your light-detection needs.

Comparison of Transistor Types

Real-World Applications of Transistors

Transistors are used in a wide range of applications, including:

1. Consumer Electronics:
   • Amplifiers in audio systems.
   • Switching in mobile devices.
2. Industrial Automation:
   • Motor controllers in assembly lines.
   • Power regulation in equipment.
3. Automotive Systems:
   • Powertrain controllers.
   • Battery management in EVs.
4. Communication Systems:
   • Signal amplification in radios.
   • Switching in networking equipment.
5. Renewable Energy:
   • Solar inverters.
   • Wind turbine control systems.

Shop high-quality transistors for all these applications at Elecsynergy and power your designs efficiently!

How to Choose the Right Transistor

Choosing the right transistor depends on these factors:

1. Current and Voltage Ratings: Ensure it meets the circuit requirements.
2. Type: Select BJT, FET, IGBT, etc., based on application needs.
3. Switching Speed: Consider the frequency of operation.
4. Package: Choose through-hole or SMD for your PCB design.
5. Environment: Ensure it can operate in your intended conditions.

Explore our transistor selection guide for expert recommendations.

Why Buy Transistors from Elecsynergy?

At Elecsynergy, we provide top-quality transistors at competitive prices, making us your trusted partner in electronics.

• Wide Selection: From BJTs to IGBTs, we have everything you need.
• Guaranteed Quality: Reliable products sourced from trusted manufacturers.
• Affordable Prices: Tailored for students, hobbyists, and professionals.
• Fast Delivery: Get your orders quickly to stay on schedule.
• Technical Support: Our experts are always ready to assist you.

Start shopping our transistor collection today and take your projects to the next level!

Conclusion

Transistors are the building blocks of modern electronics, enabling innovations across industries. By understanding their types and applications, you can make informed decisions for your projects. Browse our premium range of transistors at Elecsynergy and bring your ideas to life!

Need help selecting the right transistor? Contact our expert support team here – we’re always here to help!
